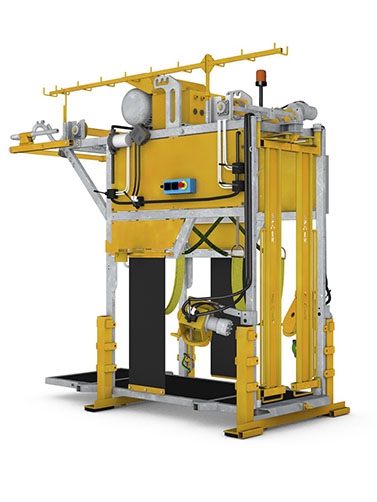

HYDRAULIC.03 cattle crush

HYDRAULIC.03 cattle crush



Total width 122cm.

Internal width 74cm.

Total length 192cm.

Internal length 175cm.

Total height 227cm.

Internal height 175cm.

PWeight (depending on the optional)

930 kg; 880 kg; 800kg

  • Welded and galvanized extra strong tubular structure 60x40

  • Galvanizing of all components

  • Grid base + non-slip rubber

  • Double flexible rubber bellyband

  • Hydraulic system with lever controls

  • Hydraulic pump with muffler

  • Total manual front opening

  • An hydraulic engine for the front right leg lifting

  • An hydraulic engine for the front left leg lifting

  • An hydraulic engine for the back right and left leg lifting

  • An hydraulic engine for the double bellyband lifting

  • Manual back bar

  • Electrical panel with circuit breaker, circuit breakers with thermic release and emergency button

  • 380 V electrical supply

  • Two 220V sockets on the left and right side

  • LED lights and angle grinder holder on the right, left and back side

  • 4-piston-platform lifting

  • Remote control for required commands (upon request)

  • Hot box - warmed container for glue (upon request)
